Description

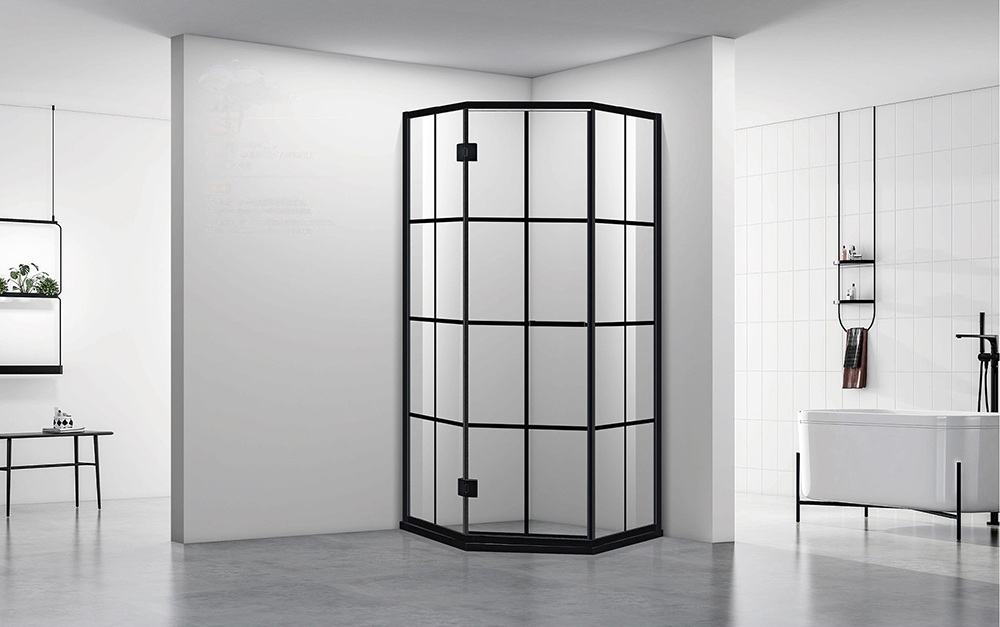

Diamond sliding shower door HG-D01
Glass thickness: 8/10mm
Glass : unltra clear/ Float Tempered glass
Standard color: mirror light / rose gold / flange gold / matte black / gold
Customized Size:
W: 800-1300
L: 800-1500
H: 1850-2200
Why choose us:
1. Can accept small quantity order
2. Accept customized
3. Handle optional
4. Towel rack optional (with/without)
5. Glass self-cleaning (more selling points)
6. Contains installation hardware (convenient installation and more thoughtful)
7, with installation instructions (conform European and American habits)
8. Square tube/round tube/stainless steel/wire drawing and gloss (more abundant products)
9. Carton packaging (Both project and supermarket)
1. Production process
Cutting-edging-rounded corners-water jet-punching-silk screen-tempering-self-cleaning liquid / safety explosion-proof film-packaging
Cut Two edges grinding
Round Corner Machine hole puncher
curve tempered glass Bathroom door
Glass film
Nano self-cleaning liquid
2. Quality Control
2.1 Each glass must be inspected to confirm before entering the factory;
2.2 Quality control in the production process are in accordance with quality control standards.
First inspection-self-inspection-special inspection-factory inspection, product standards are strictly implemented in accordance with customer technical documents or industry standards;
2.3 The dimensional accuracy and tempering quality inspection data of processed products shall be recorded and archived with traceability;
2.4 The bending degree of toughened grain is tested, the bending degree is 1.5‰, and the grain size is 55-80 grains per 50*50mm
3. The company's certification qualifications
The company's products have passed European CE certification and American SGCC certification
4. 10years of export packaging experience: Carton foam packaging and fumigation-free wooden box packaging can be realized to ensure product transportation safety;
5. The company's equipment processing capacity
Focus on the manufacture of tempered glass for home appliances for 14 years. The company has comprehensive equipment capabilities for processing high-temperature silk screens, including Italian Bottero cutting machines, Bottero edging machines, CNC machining centers, automatic punching machines, automatic rounding machines, automatic screen printing machines, tempering furnaces and other equipment.
-Choose Taiwan Glass or Jinjing Automotive Grade Original Float glass
-Polished straight edges, size tolerance ±1mm, uniform edge 1mm
-Safety corner or round corner treatment
-Water jet cutting, accurate size, vertical water jet with safety angle,
-Even tempered grain
-Fumigation-free wooden box packaging, firm and safe
-Can provide carton foam sales packaging
-Self-cleaning nano coating can be applied
-Safety explosion-proof film can be attached
Glass processing range:
Thickness: 3mm, 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm
Glass color: chear glass, ultra clear glass, tinted glass,reflective glass
Edging: straight edge, round edge
Tempering: C shape and J shape
Silk screen: high temperature screen printing, frosted screen printing
shower room: shower room assembly
Other processes: can be coated with nano self-cleaning liquid (from Germany, 10-year warranty),
Safety explosion-proof film can be attached
Packing: plywood wooden box and carton + foam separate sales packaging
How to choose shower glass manufacturer(2)
5. Look at the adjustment function of wall materials and wall clamps
Brief analysis: The connecting wall material (wall clamp) is the aluminum material that connects the shower glass and the wall, because the inclination of the wall and the offset of the installation will cause the glass of the connecting wall to be distorted, which will cause the glass to explode. Therefore, the connecting wall material must have the function of adjusting the vertical and horizontal directions, so that the aluminum material can match the distortion of the wall and installation, eliminate the distortion of the glass, and avoid the self-explosion of the glass.
6. Look at the stability of the shower rod
Brief analysis: The pull rod of the shower room is an important support to ensure the stability of the frameless shower room. The hardness and strength of the pull rod are important guarantees for the impact resistance of the shower room. It is recommended not to use a stretchable tie rod, as its strength is weak.
7. Look at the water tightness of the shower room
Brief analysis: The main observation parts of the water tightness of the shower room are
①The junction of shower room and wall
②The joint between the door and the door
③Water tightness at the hinge—the water tightness of the hinge is often not good because it needs to move
④The connection between the shower room and the stone base and bottom basin
⑤Check the sealability of the rubber strip and the rubber strip
8: See whether the product design is humane
Brief analysis: high-quality shelf, sealed magnetic strip, buffer device, easy to clean, detail processing (whether the attached cover is complete and whether the hand feels smooth).
9: Automatic water storage shower glass supplier
The purpose of the automatic water storage shower glass factory is to store the water after showering for the toilet. The utility model adds a lower water tank under the shower room. The lower water tank is provided with a water inlet and a drain, and a discharge and storage switch are arranged on the water inlet and the drain; an upper water tank is installed on the shower room, and the upper water tank is provided with an inlet The water outlet and the water outlet, the water outlet is connected with the toilet water inlet; a water pump is installed on the upper water tank, and the pump suction pipe and the water outlet pipe are respectively connected to the lower water tank and the upper water tank; the upper and lower water tanks are respectively installed with inductive water tanks The float of the water level is connected with the contact switch through the float connecting rod; the contact switch and the water pump are connected in series with the circuit. The utility model can automatically switch on or off the power supply of the water pump according to the change of the water level of the water tank, complete the automatic water storage of the water tank, and then use the height difference to automatically provide a water source for the toilet.
