Description
Wall-mounted household storage battery box
Product features：
l High safety, long life: the selection of high consistency, safety and reliability of lithium iron phosphate batteries；

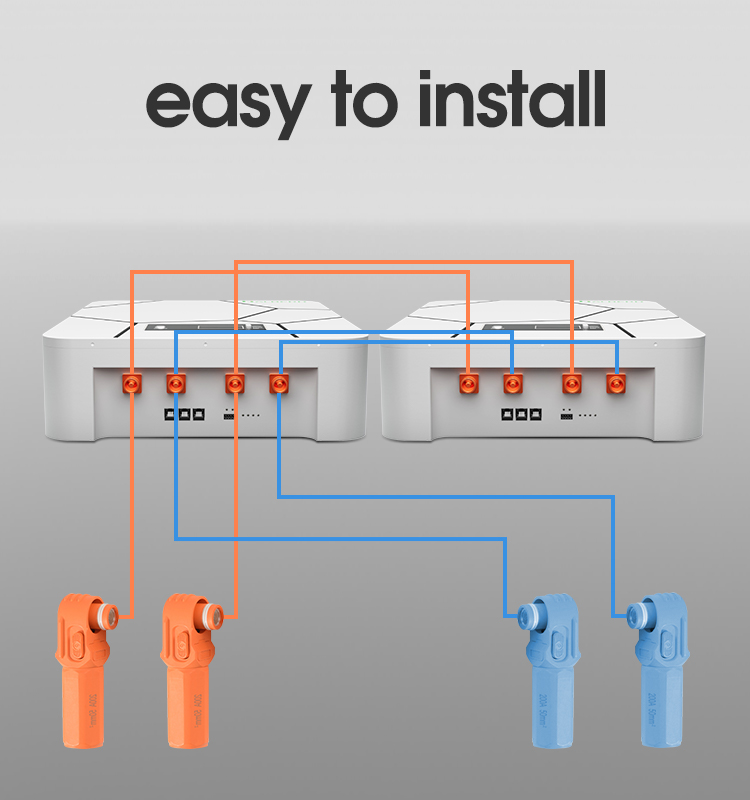

l Flexible capacity expansion on demand: Support 10 in parallel to expand capacity to meet different specifications of electricity demand；
l Compact design, small footprint, easy installation；
l Communication supports CAN, RS485, RS232;
l Integrated design, beautiful green products, non-toxic and non-polluting；
l Can be matched with the world's mainstream brand inverters, such as:Victron, Voltronic, SMA, Aiswei, Studer, Goodwe,Growatt；
|
Product model |
YH-B100S16-F |
|
Cell type |
EVE-LFP square battery cell |
|
Cell specifications |
3.2V100Ah |
|
Number of battery modules |
Support 1~8 parallel connections |
|
Rated capacity |
100Ah |
|
Rated total energy |
5.12kWh (Single) |
|
Rated voltage |
51.2V |
|
Electrical parameters |
|
|
Voltage range |
43.2~58.4V |
|
Standard charge current |
0.5C@ lasts |
|
Maximum charge current |
1C@ pulse |
|
Standard discharge current |
0.5C@ lasts |
|
Maximum discharge current |
1C@ pulse |
|
Structural parameters |
|
|
Weight |
41kg (Single) |
|
Size (height * width * depth) |
490x360x170mm (Single) |
|
Protection class |
IP54 |
|
Cooling mode |
Free cooling |
|
Ambient temperature |
Charge:0℃~55℃/Discharge:-20℃~60℃/Storage:-10℃~45℃ |
|
Operating humidity |
5~95%，relative humidity |
|
Communication methods |
CAN, RS485 |
|
Alarm & Protection |
Yes |
|

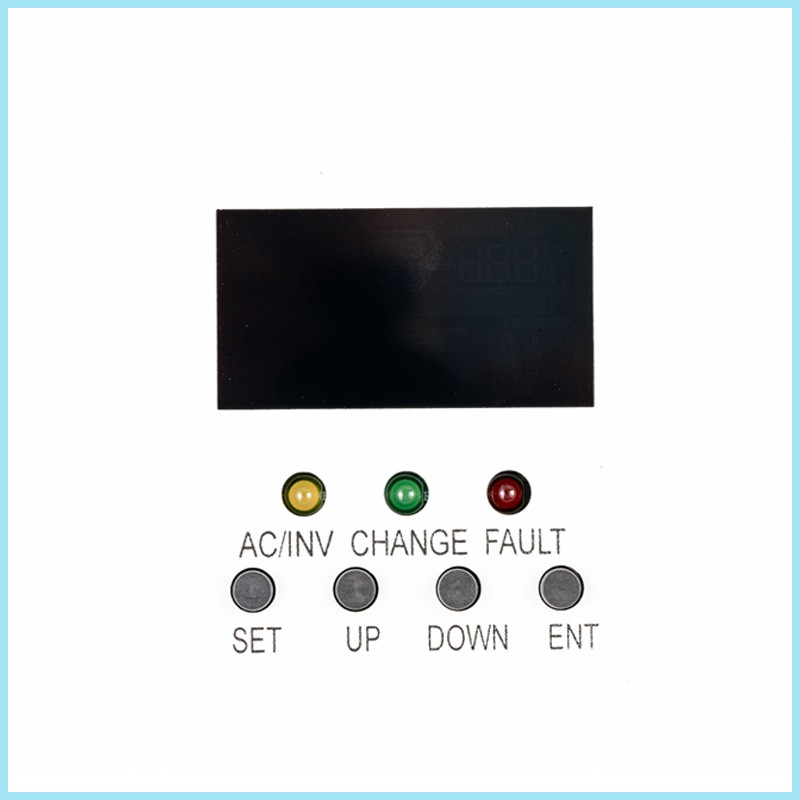

LED status |
Alarm/Run/SOC |
|

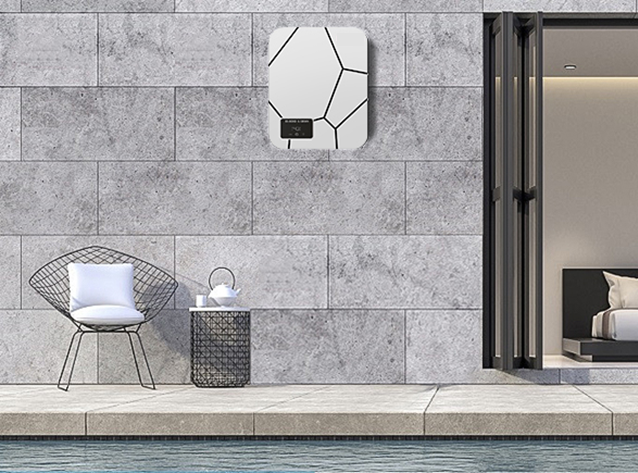

Installation mode |
Wall-mounted |
|
CERTIFICATION |
UN38.3 \MSDS\CE |
